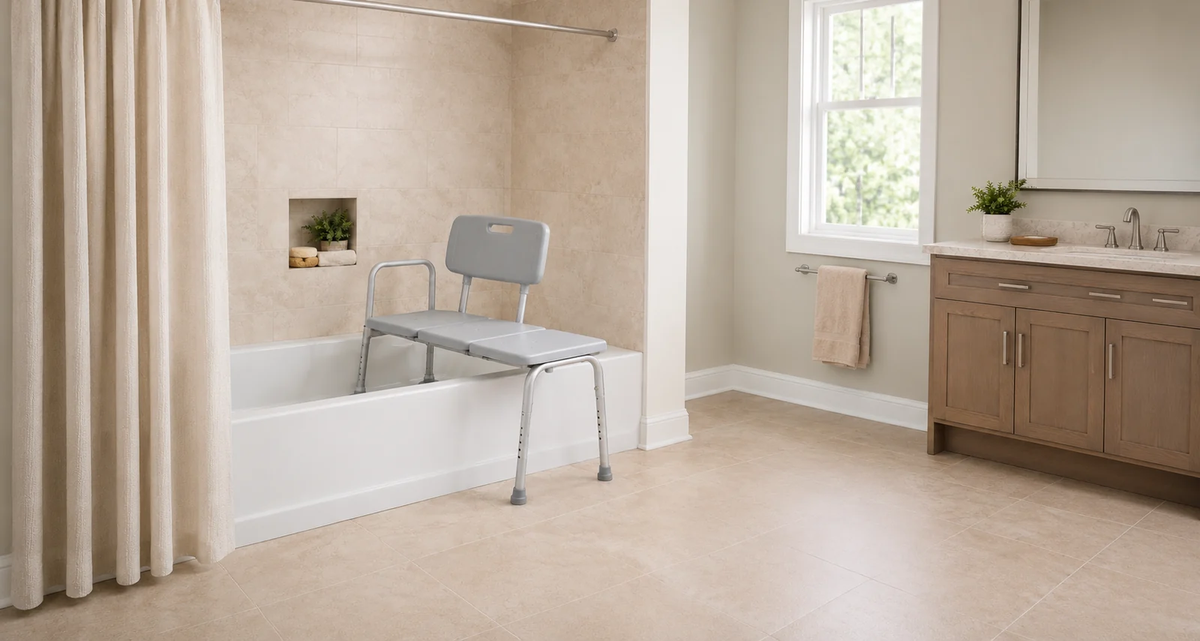

How to Measure for a Bathtub Transfer Bench: 8 Fit Checks Before Buying

A bathtub transfer bench can fit across one tub and fail completely in another bathroom. The tub wall may be too high for the frame to clear. The floor inside the tub may curve before the suction cups reach a stable position. The bathroom may have enough room for the seat but not enough room for the outside legs, the user, or an assisting person.

That is why the correct question is not simply, “How wide is the bench?” The complete setup includes the tub, the floor on both sides, the bench at its intended height, the access side, the shower enclosure, and the user's professionally assessed transfer method.

This guide covers eight measurements and fit checks to complete before buying. It does not teach a transfer technique or replace an individualized assessment. If balance, strength, pain, cognition, recent surgery, previous falls, or caregiver assistance affects bathing, ask a qualified occupational therapist, physical therapist, or other healthcare professional to evaluate the user and bathroom.

The short version

Before choosing a bathtub transfer bench:

1. Confirm that a transfer bench is the correct product category.
2. Draw the tub orientation and identify the intended entry side.
3. Measure the tub wall, rim, track, and frame-clearance requirements.
4. Measure the usable floor area inside the tub.
5. Measure the clear floor area and approach route outside the tub.
6. Compare the bench's overall size, seat size, and complete leg footprint.
7. Verify the seat-height range, backrest position, armrest position, and level setup.
8. Check weight capacity, assembly, locks, suction cups, inspection, and maintenance.

Do not rely on a single width, a photograph, or the words “universal fit.” A transfer bench is compatible only when every structural part clears the fixture, every foot reaches its intended surface, the assembled seat remains stable and level as required, and the complete transfer route works for the intended user.

1. Confirm that a bathtub transfer bench is the correct category

A standard bathtub transfer bench is designed to span a compatible bathtub wall. Part of the seat remains outside the tub and part extends over or into the bathing area. This lets a person approach and sit from outside before moving across the bench through an assessed method.

It is not the same as:

• A shower stool that sits fully inside a compatible bathing area.
• A shower chair that provides stationary seating after the user has entered.
• A bath board supported by a compatible tub rim.
• A wall-mounted folding seat that depends on structural installation.
• A mobile shower commode chair that rolls on casters and supports a different routine.

A transfer bench does not automatically solve every bathtub-access problem. Sliding glass doors, a wide deck, a freestanding tub, an inward obstruction, a narrow bathroom, or a transfer method requiring equipment not approved with the bench can make the category unsuitable.

If the product category is still uncertain, first read Shower Stool vs. Transfer Bench vs. Shower Commode Chair.

2. Draw the tub orientation and identify the intended entry side

Before recording measurements, sketch the bathroom from above. It does not need to be artistic. Its purpose is to prevent a common mistake: measuring the tub while ignoring the direction from which the user must approach.

Mark:

• The long and short sides of the tub.
• The faucet and drain ends.
• The bathroom entrance and door swing.
• The open side used for entry.
• The wall, vanity, toilet, radiator, cabinet, or other nearby fixtures.
• Grab bars and handheld-shower controls.
• Curtain position, glass panels, and door tracks.
• The planned outside and inside bench sections.
• The space required by the user and any assisting person.

Then determine whether the exact bench is reversible. On a reversible model, the backrest and armrest may be configured for right- or left-side entry, but “reversible” does not mean every component can be placed anywhere. The product manual controls orientation.

For example, one current Medline transfer-bench manual states that the backrest can be placed on either side for the bathtub setup while the armrest belongs on the tub side for that exact model. Another product may use a different construction. Never copy the orientation from a similar-looking bench.

The sketch should also show the final seated direction. If the bench can physically enter the room but its backrest faces the wrong way after assembly, the setup is not resolved.

3. Measure the tub wall, rim, track, and frame clearance

Measure more than the vertical height of the tub wall.

Record:

• Tub-floor-to-rim height on the inside.
• Bathroom-floor-to-rim height on the outside.
• Rim thickness from inside edge to outside edge.
• Width and height of any fixed sliding-door track.
• Height of decorative trim, rails, or raised edges.
• Distance from the rim to the faucet, controls, wall, or fixed glass.
• Any rounded or sloped section where the bench frame might pass.

The seat and frame must clear the sidewall at the approved height without resting on the tub rim, door track, or another obstruction unless the exact product is designed to be supported there. A conventional four-leg transfer bench normally depends on its legs and feet, not the bathtub wall, for support.

One Medline manual specifically instructs the assembler to confirm that the bench fits above the tub sidewall while adjusting the height. That warning is model-specific, but it illustrates why the rim cannot be ignored.

Do not remove a sliding-door track, cut the bench, add spacers, or place padding between the frame and tub to force clearance. Structural bathroom changes require appropriate professional evaluation and installation.

4. Measure the usable floor area inside the tub

The tub's advertised length and width do not describe the usable area for the inside legs.

Tub floors often become narrower near the ends and curve upward toward the walls. They may also include:

• A raised drain or drain cover.
• Textured zones with uneven transitions.
• Built-in contours or anti-slip ridges.
• A sloped floor.
• A faucet housing or overflow plate.
• A loose mat or removable insert.
• Soap residue or damaged surface material.

Measure the flat, unobstructed area where the inside feet or suction cups are intended to land. Record the distance between those contact points rather than measuring only the widest part of the tub.

Many transfer benches use two larger suction-cup feet on the tub side and smaller rubber feet on the bathroom-floor side. Confirm the location of each leg type in the exact manual. Suction cups must sit on a compatible surface and must not bridge a curve, drain lip, grout line, damaged finish, or loose mat.

A suction cup is not a substitute for correct fit. It cannot make a severely curved, contaminated, cracked, or obstructed surface compatible. Do not relocate a suction-cup leg to the outside merely because that position appears easier.

5. Measure the clear floor and approach route outside the tub

The outside half of the setup is frequently the limiting factor.

Measure:

• Clear floor width beside the tub.
• Clear floor depth from the tub to the nearest obstruction.
• Distance to the toilet, vanity, cabinet, wall, or radiator.
• Bathroom-door opening and door swing.
• Space required to approach the seat.
• Space required for the intended mobility aid.
• Space required by an assisting person.
• Space needed to manage clothing, towels, and the shower curtain without standing or twisting beyond the assessed method.

Measure with doors and drawers in the positions that will occur during use. A cabinet drawer that opens into the outside bench leg is still an obstruction even if it is normally closed. A bathroom door that traps the user or blocks an assistant after the bench is installed is not a minor inconvenience.

Create a dry mock footprint with removable painter's tape only if doing so will not damage the floor. Mark the proposed outside feet, seat edge, and approach zone. The tape is a planning aid, not proof that the bench fits; the verified product dimensions and assembled test still control.

Keep the route free of loose rugs, cords, baskets, scales, and furniture. The U.S. Department of Veterans Affairs recommends clear pathways, level surfaces, appropriate grab bars, and suitable bathing equipment as parts of a broader bathroom-safety plan.

6. Compare overall size, seat size, and the complete leg footprint

Manufacturers may publish several different dimensions. They are not interchangeable.

Record these fields for every candidate:

• Overall width at the widest point.
• Overall depth at the deepest point.
• Seat width and seat depth.
• Seat sections positioned inside and outside the tub.
• Distance between armrest and backrest structures.
• Leg-to-leg footprint at the intended height.
• Suction-cup diameter and rubber-tip width, if published.
• Product weight.
• Folded or separated dimensions if the model is transported or stored.

A current Drive transfer-bench specification, for example, lists a 26-inch seat width, a seat depth of 18.5 to 19.5 inches, and a seat-height range of 17.5 to 22.5 inches for one exact model. Another Drive AquaSense model lists a 26-inch overall width and an 18-to-22-inch seat-height range. These examples show why the model number matters; they do not define a universal transfer-bench size.

The DeepTireh HY3510L is a three-panel bathtub transfer bench with a published product weight of 14 pounds and maximum user weight of 300 pounds. Those two values do not confirm bathroom fit. Compare the current model information and supplied manual with the measured tub before ordering or assembly.

If an essential dimension is missing, request verified information from the manufacturer or authorized seller. Do not estimate leg positions from a product photograph or scale the image using the seat panels.

7. Verify seat height, orientation, and a level four-point setup

Seat height affects rim clearance, leg contact, sitting position, and the user's assessed transfer method. There is no universal best height.

Compare the model's permitted seat-height range and adjustment increments with:

• The tub-wall clearance measurements.
• The height difference between the tub floor and bathroom floor.
• The user's assessed sitting and standing requirements.
• Foot support and lower-limb position.
• The prescribed transfer method and assistance.
• The armrest and backrest orientation.

Adjust only when the bench is unoccupied. Every push button, clip, clamp, or pin must engage exactly as the manual requires. Some models use differently designed inside and outside legs; some manuals require corresponding adjustment holes. Never assume that independently staggering the legs is an acceptable way to compensate for a sloped or uneven surface.

The assembled bench must not rock, wobble, lean, or contact the tub wall as an improvised support. All four feet must contact their intended surfaces simultaneously as required by the product instructions.

Do not drill extra holes, shorten legs, mix parts from another model, place blocks under a foot, or add a cushion to create height. An unapproved cushion can change seat height, drainage, friction, and user position.

8. Check capacity, assembly, suction cups, and maintenance

Weight capacity is the maximum user weight or load stated for the exact model and approved configuration. Product weight describes the empty bench. Do not combine these numbers or treat capacity as proof of bathroom compatibility.

Before purchase, verify:

• Exact model and revision.
• Published maximum user weight.
• Required seat sections, legs, clamps, fasteners, armrest, and backrest.
• Location of suction-cup legs and rubber-tip legs.
• Replacement-part availability.
• Assembly and adjustment instructions.
• Cleaning, drying, inspection, and storage requirements.

Before each use, follow the manual's required checks. These commonly include confirming that:

• All screws, joints, and fittings are secure.
• Every push button, clip, or clamp is fully engaged.
• The bench is level and does not wobble.
• All feet contact their intended surfaces.
• Rubber tips and suction cups are present, clean, and undamaged.
• Plastic seat panels have no cracks or ruptures.
• The bathing and approach areas are clear.

Never stand on a transfer bench. Do not use the armrest to support full body weight unless the exact instructions expressly describe that load. Do not make adjustments while a person is seated.

Follow the approved method for releasing suction cups; pulling the frame without using the designed release tabs can damage parts. Clean with the products and methods specified in the manual, rinse as directed, and dry after use. Stop using the bench when damage, corrosion, looseness, cracking, worn tips, failed suction cups, or instability cannot be corrected with approved replacement parts and procedures.

Build a bathroom-fit record

Use the same fields for every model so that an attractive feature does not hide a failed measurement.

Bathroom identity

• Tub type and location.
• Intended entry side.
• Door, curtain, track, and fixed-panel arrangement.
• Nearby fixtures and approach route.

Tub measurements

• Inside floor-to-rim height.
• Outside floor-to-rim height.
• Rim thickness.
• Track or raised-edge height.
• Usable inside floor width and depth.
• Drain, curve, slope, and obstruction locations.

Outside-space measurements

• Clear width and depth beside the tub.
• Door and drawer swing.
• User, mobility-aid, and assistant space.
• Grab-bar and handheld-shower access.

Bench specifications

• Manufacturer, model, and revision.
• Overall width and depth.
• Seat width and depth.
• Seat-height range and increments.
• Complete leg footprint and foot type.
• Backrest and armrest orientation.
• Product weight and weight capacity.

Verification

• Current manual obtained.
• All dimensions confirmed from a verified source.
• Dry assembled fit tested while unoccupied.
• Every lock and fastener engaged.
• All four feet stable on their intended surfaces.
• User-specific transfer plan professionally confirmed when needed.

Stop and reassess when

• The bathtub is not compatible with a conventional four-leg transfer bench.
• A fixed door, track, wall, faucet, or fixture blocks the frame or transfer route.
• The seat or frame cannot clear the tub wall at an approved setting.
• An inside foot would land on a curve, drain, ridge, loose mat, or damaged surface.
• An outside foot would land on a rug, threshold, grout transition, or obstruction.
• The bathroom lacks adequate approach or assistance space.
• The backrest or armrest cannot be configured exactly as directed.
• A button, clip, clamp, fastener, suction cup, or rubber tip is damaged or will not engage.
• The bench rocks, wobbles, leans, or depends on the tub rim for unintended support.
• The user's assessed transfer method is incompatible with the setup.
• The user's weight exceeds the exact model's published capacity.
• An improvised part or bathroom modification is required to force the fit.

Do not proceed because seven of eight checks pass. One unstable foot, blocked route, incomplete lock, or incorrect orientation is enough to reject the setup.

Common measuring mistakes

• Measuring only the tub opening and ignoring the outside floor.
• Using wall-to-wall bathroom dimensions instead of clear operating space.
• Measuring the seat but not the splayed leg footprint.
• Ignoring the sliding-door track or fixed glass panel.
• Measuring the widest part of the tub instead of the leg-contact area.
• Treating a suction cup as a solution for a curved or dirty surface.
• Assuming every reversible bench uses the same component orientation.
• Choosing seat height from body height alone.
• Staggering leg settings without model-specific instructions.
• Confusing product weight with weight capacity.
• Estimating dimensions from photographs.
• Testing the occupied bench before completing a dry, unoccupied assembly check.

Frequently asked questions

Will a transfer bench fit every bathtub?

No. Tub-wall height and thickness, inside floor shape, outside clearance, door tracks, fixed glass, nearby fixtures, bench dimensions, and the transfer route all affect compatibility.

How much of the bench should be inside the tub?

Follow the exact model's assembly and placement instructions. Seat-panel count alone is not a universal placement rule because frame designs differ.

Should the suction cups be inside the bathtub?

Many conventional models place the larger suction-cup legs on the tub side, but the exact manual controls. Do not reverse the legs based on appearance or convenience.

Can the bench rest on the bathtub wall?

Not unless the exact product is designed and instructed to use the tub rim as a support. A conventional four-leg transfer bench typically must clear the wall and remain supported by its feet.

Can I stagger the leg heights to make the seat level?

Only use adjustment positions expressly permitted by the exact manufacturer. Do not independently stagger, drill, shorten, block, or shim the legs to compensate for an unsuitable surface.

What is the best transfer-bench seat height?

There is no universal best height. It must fall within the model's approved range, clear the tub wall, maintain the required foot contact, and suit the user's professionally assessed transfer needs.

Can a transfer bench replace grab bars?

No. A bench and properly installed grab bars serve different functions. Do not use towel racks, glass doors, plumbing fixtures, or the bench backrest as improvised supports.

Does a higher weight capacity mean the bench is more stable?

No. Capacity is one model-specific limit. Stability also depends on correct assembly, intact parts, full foot contact, compatible surfaces, user position, and the prescribed transfer method.

Can I remove the backrest or armrest if space is tight?

Only if the current manual permits that exact configuration. Removing a structural part to create clearance can change orientation, support, or the approved setup.

Measure the complete transfer route, not just the tub

A bathtub transfer bench is a system, not a seat placed in isolation. The tub wall must clear the frame, the inside and outside feet must reach compatible surfaces, the seat must remain stable at an approved height, and the user and any assistant must have enough room to follow the assessed transfer plan.

Reject any setup that depends on guessing, forcing parts, shifting leg positions outside the instructions, resting the frame on an unintended surface, or using an improvised accessory. Review the DeepTireh Bathtub Transfer Bench and visit the DeepTireh Support Center for model-specific information and assistance.
