HY3413L Shower Stool Setup Guide
MODEL HY3413L
BEFORE YOU BEGIN
Use this illustrated guide to assemble and adjust your DeepTireh HY3413L shower stool safely. Confirm the model number before starting. The package should include one seat base, two upper leg frames, four lower legs, and five tightening knobs. Do not use the shower stool if any part is missing or damaged.

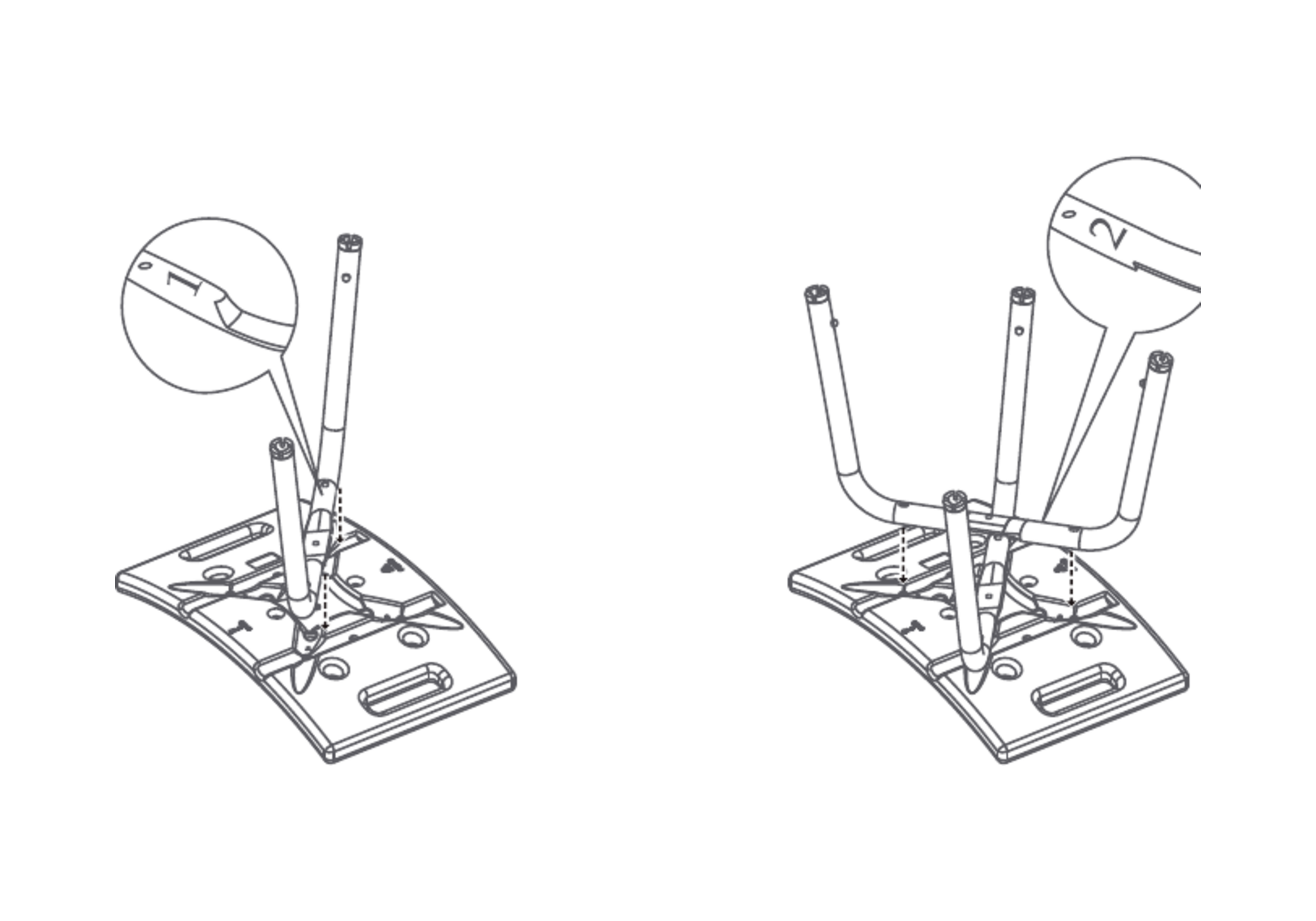

STEP 1 · FRAME
ATTACH THE UPPER LEG FRAMES
Place the seat upside down on a clean, flat surface with the screw holes facing upward. Position the two upper leg frames underneath the seat in an X pattern and align the mounting holes. Install all five tightening knobs and tighten them evenly until the frames are secure.

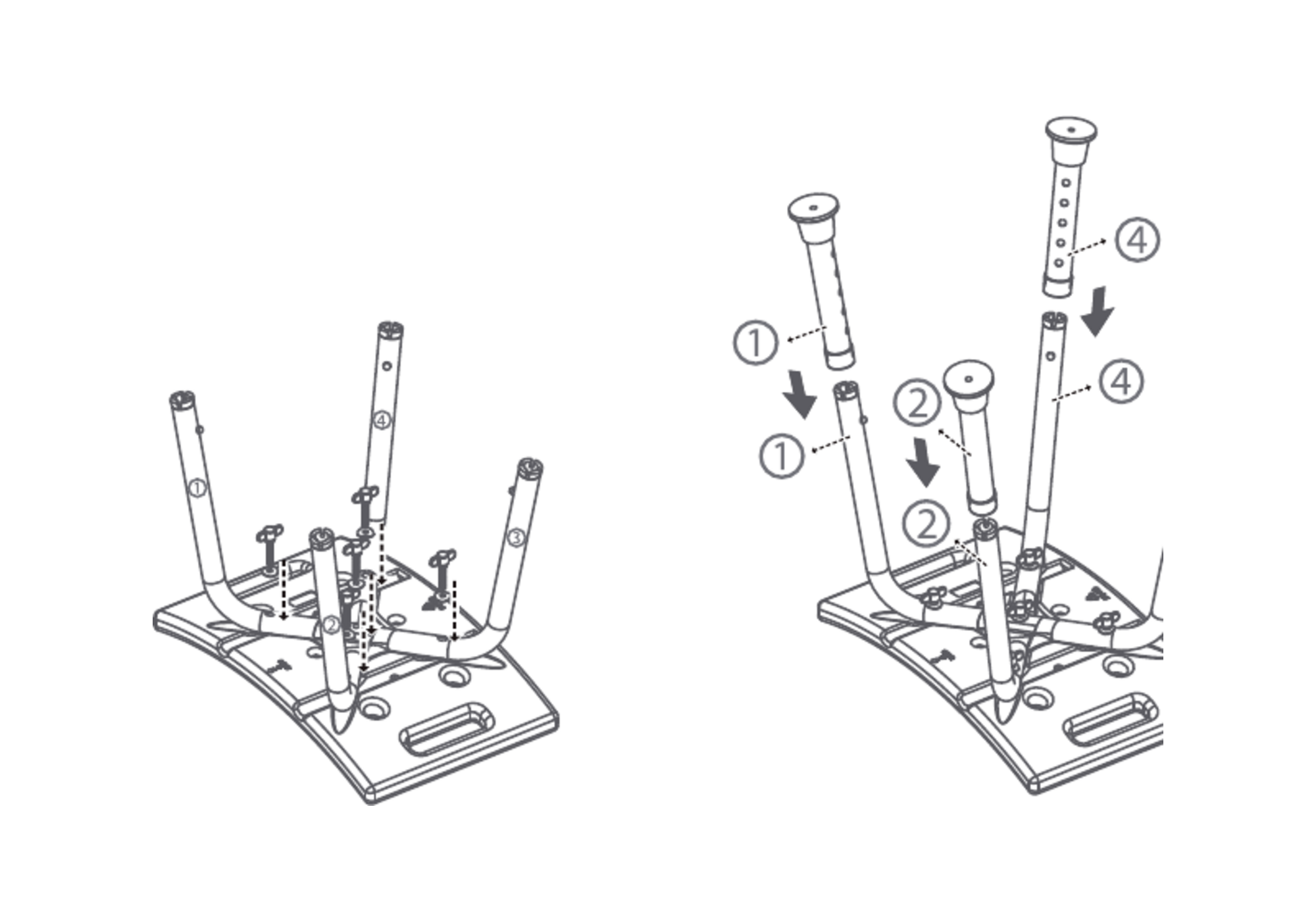

STEP 2 · LEGS
INSTALL THE LOWER LEGS
Insert one lower leg into each upper leg tube. Press the brass push pin while sliding the leg into position, then confirm that the pin clicks completely through the selected adjustment hole. Repeat for all four legs.

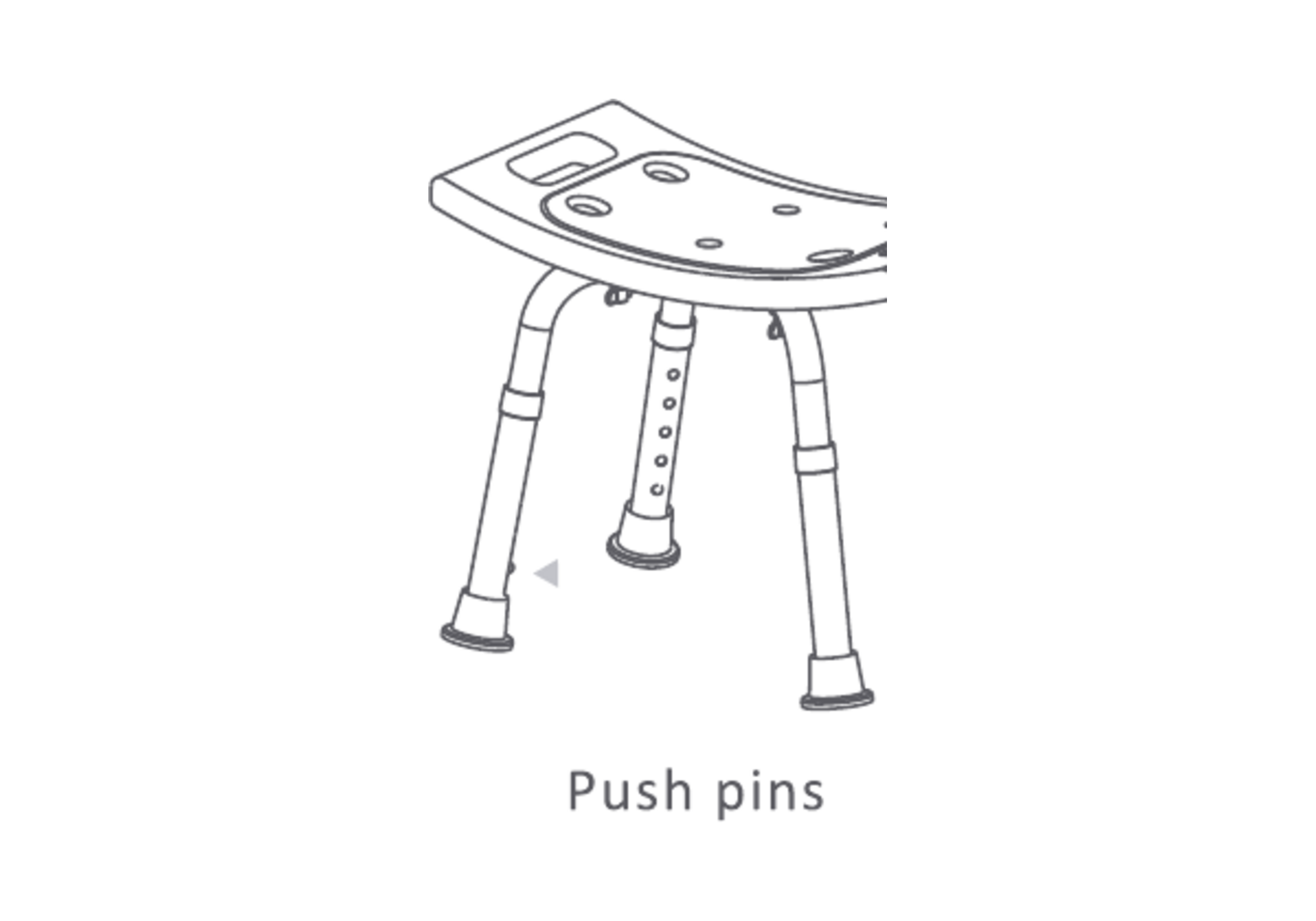

STEP 3 · HEIGHT AND STABILITY
ADJUST AND LEVEL
Set all four legs to the same numbered height. Make sure every push pin protrudes fully through its locking hole. Place the shower stool upright on a firm, level surface and confirm that all four rubber feet contact the floor and the stool does not wobble.
IMPORTANT SAFETY INFORMATION
BEFORE EVERY USE
Check that all five tightening knobs are secure, all four push pins are fully locked, and every rubber foot is in good condition. Use the shower stool only on a firm, level shower or tub floor with all four feet in contact with the surface. Do not use it if it is unstable, worn, missing any part, or damaged. Do not exceed the maximum user weight of 300 lb (136 kg).
