HY8251L-5 Walker Setup Guide
MODEL HY8251L-5
BEFORE YOU BEGIN
Use this illustrated guide to assemble and adjust your DeepTireh HY8251L-5 walker safely. Confirm the model number before starting. The package should include two main frame sections, two lower legs, and two front wheel assemblies. Do not use the walker if any part is missing or damaged.

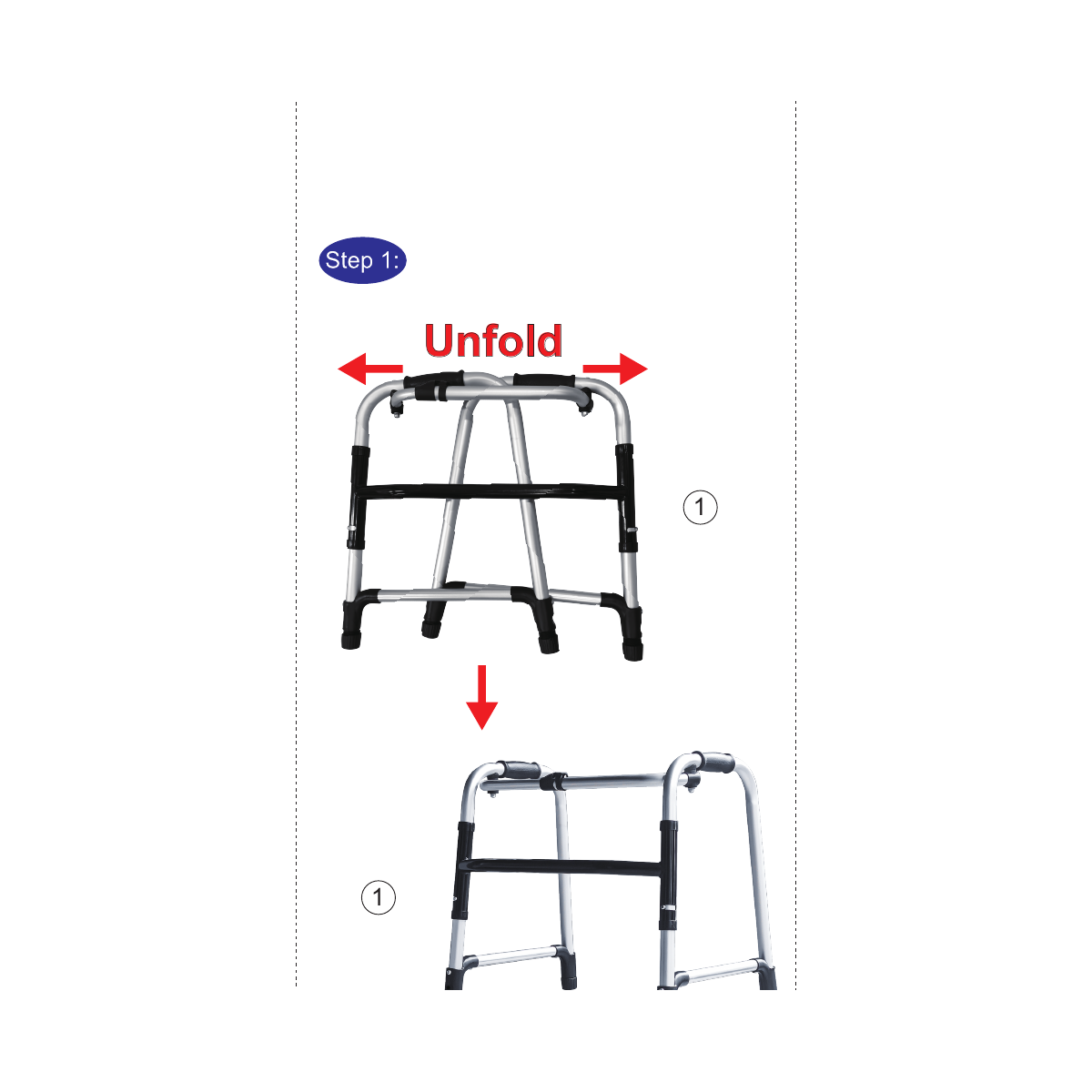

STEP 1 · FRAME
UNFOLD THE WALKER
Place the folded walker on a firm, level surface. Pull the two side frames apart until the walker is fully open and stable. Keep your fingers clear of the folding joints while opening the frame.

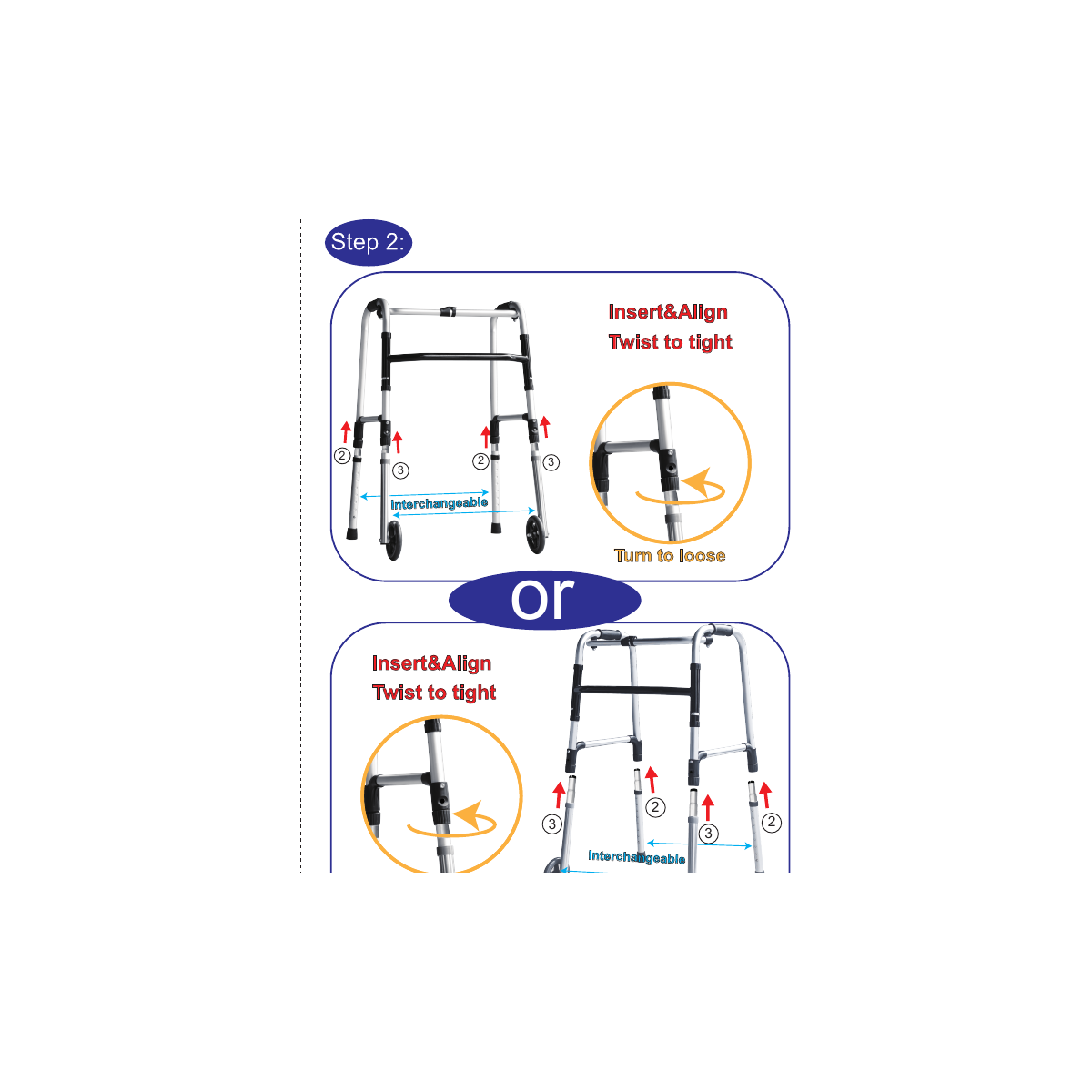

STEP 2 · LEGS AND WHEELS
INSTALL AND SECURE
Insert the two front wheel assemblies and the two rear legs into the frame as shown. Align each connection correctly and tighten every locking collar. Confirm that all four lower sections are fully inserted and securely locked.

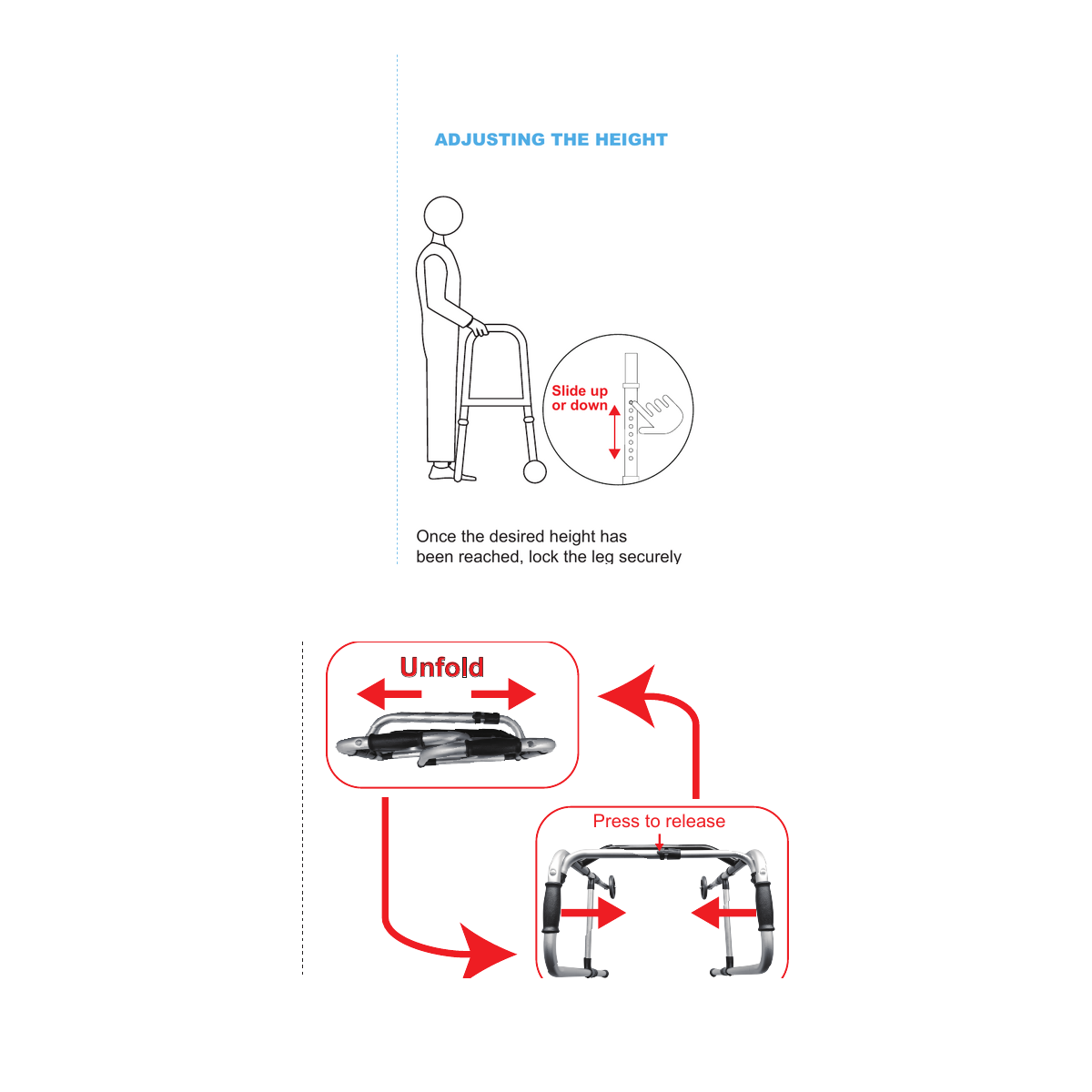

STEP 3 · HEIGHT AND FOLDING
ADJUST AND CHECK
Adjust all four legs to the same height. Make sure every height button clicks fully through its adjustment hole and the walker stands level. To fold the walker, press the release on the top crossbar and bring the two sides inward. Keep fingers clear of the folding mechanism.
IMPORTANT SAFETY INFORMATION
BEFORE EVERY USE
Inspect the frame, locking buttons, collars, wheels, and rubber tips before every use. All four legs must be set to the same height and firmly locked. Use only on firm, dry, level surfaces. Do not stand on the walker, use it in a shower or pool, or place your full body weight on the handgrips. Stop using it immediately if any part is loose, worn, missing, or damaged.
